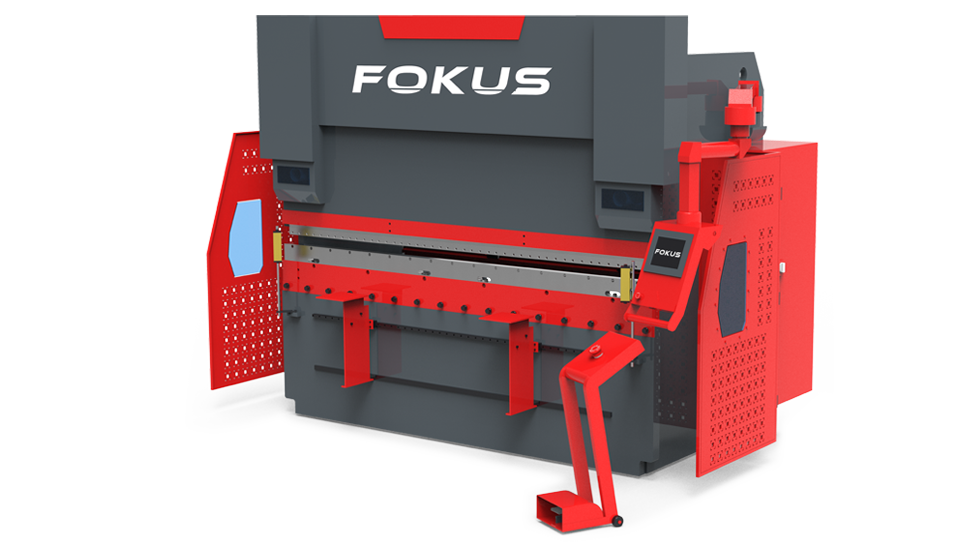

· The main machine adopts the structure of series WC67Y hydraulic press brake
· High precision,high efficiency CNC Torsion Bar Synchro Press Brakes
· Holistic welding structure
· Stabilizes left and right balance with help of the mechanical Torsion Bar
· Back guage is drove by servo motor and performance
· Ball screw and linear quide
| Model | Nominal Force [kip] | Workable Length [in] | Poles Distance [in] | Throat Depth [in] | Slider Stroke [in] | Max height [in] | Power [hp] | Dimension [in] |
| 40t / 2200 | 89.9 | 86.6 | 73.6 | 9.1 | 3.9 | 12.6 | 5.4 | 86.6 x 47.2 x 74.8 |
| 40t / 2500 | 89.9 | 98.4 | 77.2 | 9.1 | 3.9 | 12.6 | 5.4 | 98.4 x 47.2 x 74.8 |
| 50t / 2500 | 112.4 | 98.4 | 77.2 | 9.1 | 3.9 | 12.6 | 7.4 | 98.4 x 47.2 x 78.7 |
| 63t / 2500 | 141.6 | 98.4 | 77.2 | 9.8 | 4.7 | 12.6 | 7.4 | 98.4 x 51.2 x 87.0 |
| 63t / 3200 | 141.6 | 126 | 102.4 | 9.8 | 4.7 | 12.6 | 7.4 | 126.0 x 51.2 x 87.0 |
| 80t / 2500 | 179.8 | 98.4 | 77.2 | 11.8 | 4.7 | 12.6 | 10.1 | 98.4 x 55.1 x 90.6 |
| 80t / 3200 | 179.8 | 126 | 102.4 | 12.6 | 4.7 | 13.8 | 10.1 | 126.0 x 59.1 x 90.6 |
| 80t / 4000 | 179.8 | 157.5 | 124.4 | 12.6 | 4.7 | 13.8 | 10.1 | 157.5 x 59.1 x 94.5 |
| 100t / 2500 | 224.8 | 98.4 | 77.2 | 12.6 | 4.7 | 13.8 | 10.1 | 98.4 x 63.0 x 94.5 |
| 100t / 3200 | 224.8 | 126 | 102.4 | 12.6 | 5.5 | 15.7 | 10.1 | 126.0 x 63.0 x 102.4 |
| 100t / 4000 | 224.8 | 157.5 | 124.4 | 12.6 | 5.5 | 15.7 | 10.1 | 157.5 x 63.0 x 102.4 |
| 125t / 3200 | 281 | 126 | 102.4 | 12.6 | 5.5 | 15.7 | 14.8 | 126.0 x 63.0 x 102.4 |
| 125t / 4000 | 281 | 157.5 | 124.4 | 12.6 | 5.5 | 15.7 | 14.8 | 157.5 x 63.0 x 102.4 |
| 160t / 3200 | 359.7 | 126 | 102.4 | 12.6 | 5.5 | 18.1 | 14.8 | 126.0 x 66.9 x 106.3 |
| 160t / 4000 | 359.7 | 157.5 | 124.4 | 12.6 | 7.5 | 18.1 | 14.8 | 157.5 x 66.9 x 110.2 |
| 160t / 5000 | 359.7 | 196.9 | 159.8 | 12.6 | 7.5 | 18.1 | 14.8 | 196.9 x 74.8 x 122.0 |
| 160t / 6000 | 359.7 | 236.2 | 190.9 | 12.6 | 7.5 | 18.1 | 14.8 | 248.0 x 74.8 x 126.0 |
| 200t / 3200 | 449.6 | 126 | 102.4 | 12.6 | 7.5 | 18.1 | 20.1 | 126.0 x 76.8 x 110.2 |
| 200t / 4000 | 449.6 | 157.5 | 124.4 | 12.6 | 7.5 | 18.1 | 20.1 | 157.5 x 76.8 x 110.2 |
| 200t / 5000 | 449.6 | 196.9 | 159.8 | 12.6 | 7.5 | 18.1 | 20.1 | 196.9 x 76.8 x 118.1 |
| 200t / 6000 | 449.6 | 236.2 | 190.9 | 12.6 | 7.5 | 18.1 | 20.1 | 236.2 x 76.8 x 129.9 |
| 250t / 3200 | 562 | 126 | 96.5 | 15.7 | 7.5 | 23.2 | 24.8 | 128.0 x 78.7 x 126.0 |
| 250t / 4000 | 562 | 157.5 | 124.4 | 15.7 | 9.8 | 23.2 | 24.8 | 157.5 x 78.7 x 133.9 |
| 250t / 5000 | 562 | 196.9 | 159.8 | 15.7 | 9.8 | 23.2 | 24.8 | 196.9 x 78.7 x 133.9 |
| 250t / 6000 | 562 | 236.2 | 190.9 | 15.7 | 9.8 | 23.2 | 24.8 | 236.2 x 78.7 x 133.9 |
| 300t / 3200 | 674.4 | 126 | 102.4 | 15.7 | 9.8 | 23.2 | 29.5 | 126.0 x 78.7 x 135.8 |
| 300t / 4000 | 674.4 | 157.5 | 124.4 | 15.7 | 9.8 | 23.2 | 29.5 | 157.5 x 78.7 x 135.8 |
| 300t / 5000 | 674.4 | 196.9 | 159.8 | 15.7 | 9.8 | 23.2 | 29.5 | 196.9 x 78.7 x 135.8 |
| 300t / 6000 | 674.4 | 236.2 | 190.9 | 15.7 | 9.8 | 23.2 | 29.5 | 236.2 x 78.7 x 135.8 |
| 400t / 3200 | 899.2 | 126 | 102.4 | 15.7 | 9.8 | 23.2 | 40.2 | 126.0 x 85.8 x 133.9 |
| 400t / 4000 | 899.2 | 157.5 | 124.4 | 15.7 | 9.8 | 23.2 | 40.2 | 157.5 x 85.8 x 133.9 |
| 400t / 5000 | 899.2 | 196.9 | 159.8 | 15.7 | 9.8 | 23.2 | 40.2 | 196.9 x 85.8 x 137.8 |
| 400t / 6000 | 899.2 | 236.2 | 190.9 | 15.7 | 9.8 | 23.2 | 40.2 | 236.2 x 85.8 x 149.6 |
| 500t / 5000 | 1124 | 196.9 | 159.8 | 15.7 | 11.8 | 23.2 | 49.6 | 198.8 x 137.8 x 145.7 |
| 500t / 6000 | 1124 | 236.2 | 190.9 | 15.7 | 11.8 | 23.2 | 49.6 | 238.2 x 137.8 x 145.7 |
| 600t / 4000 | 1348.8 | 157.5 | 124.4 | 15.7 | 12.6 | 23.2 | 60.3 | 159.4 x 177.2 x 145.7 |
| 600t / 6000 | 1348.8 | 236.2 | 190.9 | 15.7 | 12.6 | 23.2 | 60.3 | 238.2 x 177.2 x 145.7 |
